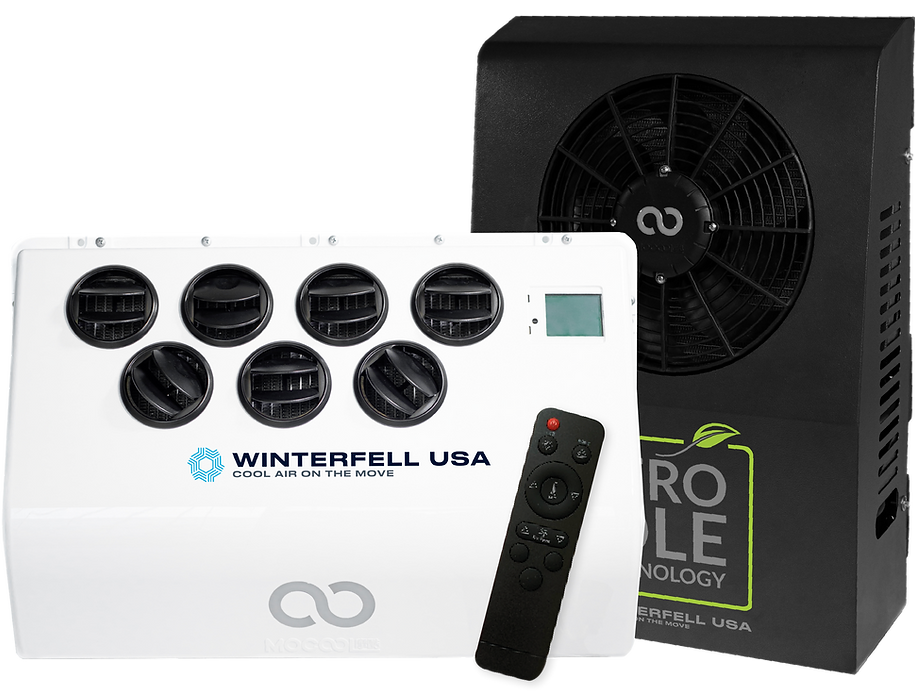

MODEL INV-2000F1
Autonomous Electric A/C
Split Type
It is a product with low impact on the environment.
The estimated useful life of the A/C is 5 years.
Requires low frequency maintenance and easy implementation.
It has an aesthetic, durable, non-invasive design, as well as silent.
It has self-diagnosis and self-protection.
Cooling power in land or heavy transport cabins.
It has battery operation (AGM 31 OD Technology).
Our equipment allows for significant savings in fuel, maintenance and repairs.
7,500 BTU's cooling...
It has an operation time of 10 hours up to 30 hours with the engine off or on, depending on the operation of the truck. ECO option, saving energy without reducing the quality of A/C operation.
Click to download.
Our A/C works with the engine off
INV-2000F1
Key Benefits
01
Equipment with a high degree of quality, specifically designed for heavy duty.
02
Fast and powerful cooling, with 7,500 BTU capacity according to JIS Standard. (38 ̊C) Laboratory test.
03
Battery operation, obtaining high fuel savings. (Deep cycled AGM technology)
04
Cooling power to cover the requirement of any bedroom of all truck brands that operate in USA.
08
Equipment with a high degree of quality, designed for exceptional performance, specifically for heavy transport.
06
Operation with the transport's main battery bank, it is not necessary to add an extra battery bank.
07
The equipment has self-diagnosis and self-protection capable of detecting low voltage, due to which the batteries transported by the AC equipment will never be exhausted.
12
Availability of spare parts and after-sales service commitment.
10
Simple and economical equipment maintenance.
11
Quick and safe installation, 0EM quality. Training and certification available for users.
09
Design with silent and non-invasive operation for the user's functions, and does not add significant weight to transport.
05
Continuous operation of 8 to 10 hours uninterrupted and extending autonomy up to 30 hours by adding solar panel.
(The hours of autonomy will depend on the operation of the truck)
Get to know our package!
SMART
INV-2000F1
Our model
How it works?
Vertical Condenser
DC12V
2,200W (7500BTU)
576W
48A
400m3/Hr (235CFM)
R-134A (630g)
10 kg (22lb)
25 kg (55lb)
(Indoor unit)r)
(Outdoor unit)
682*465*192mm540*362*165mm
(Outdoor unit)
(Indoor unit)
ITEMS
Rated voltage
Rated cooling capacity
Potencia nominal
Rated power
Air flow
Refrigerant
Weight
Product dimensions
(L*An*Al)
%2012_45_39%E2%80%AFp_m_.png)
-
Winterfell's air conditioning system is powered by the truck's primary batteries.
-
It does not need extra or auxiliary batteries.
-
It does not have a diesel engine like the APU.
-
Works with AGM Batteries. (recommendation)
-
APP A/C Control to turn equipment on and off and control metrics.
-
Reduces polluting emissions from the truck engine.
-
Ideal temperature inside your cabin.
-
2 Integrated hour meters and self-diagnosis of faults.
-
Runs up to 10 hours of uninterrupted fresh air while your truck's engine is off.
-
Great savings on diesel, maintenance, installation and significant cost reduction in engine wear.
-
The A/C has an intelligent system that measures when the battery voltage is low (it is below 10.5V) and automatically turns off so you never run out of battery.
INV-2600F
Our model
How it works?
Vertical Condenser
DC24V
2,600W (8900BTU)
912W
38A
450m3/Hr (265CFM)
R-134A (610g)
10 kg (22lb)
25 kg (55lb)
(Indoor unit)
(Outdoor unit)
682*465*192mm540*362*165mm
(Outdoor unit)
(Indoor unit)
ITEMS
Rated voltage
Rated cooling capacity
Rated power
Rated current consumption
Air flow
Cooling
Weight
Product dimensions
(L*An*Al)
%2012_46_01%E2%80%AFp_m_.png)
-
Winterfell's air conditioning system is powered by the truck's primary batteries.
-
It does not need extra or auxiliary batteries.
-
It does not have a diesel engine like the APU.
-
Works with AGM Batteries. (recommendation)
-
APP A/C Control to turn equipment on and off and control metrics.
-
Reduces polluting emissions from the truck engine.
-
Ideal temperature inside your cabin.
-
2 Integrated hour meters and self-diagnosis of faults.
-
Runs up to 10 hours of uninterrupted fresh air while your truck's engine is off.
-
Great savings on diesel, maintenance, installation and significant cost reduction in engine wear.
-
The A/C has an intelligent system that measures when the battery voltage is low (below 10.5V) and automatically turns off so you never run out of battery.
INV-2000FT-BY12V
Our model
How it works?
Horizontal Condenser
DC12V
2,200W (7500BTU)
600W
50A
425m3/Hr (250CFM)
R-134A (610g)
10 kg (22lb)
25 kg (55lb)
(Indoor unit)
(Outdoor unit)
690*430*194mm540*362*165mm
(Outdoor unit)
(Indoor unit)
ITEMS
Rated voltage
Rated cooling capacity
Rated power
Rated current consumption
Air flow
Refrigerant
Weight
Product dimensions
(L*An*Al)
%2012_46_20%E2%80%AFp_m_.png)
-
Winterfell's air conditioning system is powered by the truck's primary batteries.
-
It does not need extra or auxiliary batteries.
-
It does not have a diesel engine like the APU.
-
Works with AGM Batteries. (recommendation)
-
APP A/C Control to turn equipment on and off and control metrics.
-
Reduces polluting emissions from the truck engine.
-
Ideal temperature inside your cabin.
-
2 Integrated hour meters and self-diagnosis of faults.
-
Runs up to 10 hours of uninterrupted fresh air while your truck's engine is off.
-
Great savings on diesel, maintenance, installation and significant cost reduction in engine wear.
-
The A/C has an intelligent system that measures when the battery voltage is low (below 10.5V) and automatically turns off so you never run out of battery.
INV-2600FT-BY24V
Our model
How it works?
%2010_04_52%20p_m_.png)
Horizontal Condenser
DC24V
2,930W (10,000BTU)
912W
38A
400m3/Hr (510m3/Hr (300CFM)
R-134A (610g)
10 kg (22lb)
25 kg (55lb)
(Indoor unit)
(Outdoor unit)
690*430*194mm540*362*165mm
(Outdoor unit)
(Indoor unit)
ITEMS
Rated voltage
Rated cooling capacity
Rated power
Rated current consumption
Air flow
Refrigerant
Weight
Product dimensions
(L*An*Al)
%2012_46_40%E2%80%AFp_m_.png)
-
Winterfell's air conditioning system is powered by the truck's primary batteries.
-
It does not need extra or auxiliary batteries.
-
It does not have a diesel engine like the APU.
-
Works with AGM Batteries. (recommendation)
-
APP A/C Control to turn equipment on and off and control metrics.
-
Reduces polluting emissions from the truck engine.
-
Ideal temperature inside your cabin.
-
2 Integrated hour meters and self-diagnosis of faults.
-
Runs up to 10 hours of uninterrupted fresh air while your truck's engine is off.
-
Great savings on diesel, maintenance, installation and significant cost reduction in engine wear.
-
The A/C has an intelligent system that measures when the battery voltage is low (below 10.5V) and automatically turns off so you never run out of battery.
